EXTREMELY HIGH PRESSURE

SAE 100R12
SAE 100R12GATES C-12 & C12M 4 SPIRAL WIRE HOSE—SAE 100R12
Meets flame resistance acceptance Designation "U.S. MSHA 2G." Designed for hydraulic application with excellent resistance to impulse pressures. Tube construction is made of synthetic rubber (neoprene ). Reinforcement is four layers of steel wires, high tensile strength. Cover is also made of black, oil resistant, sythetic rubber (neoprene). Temperature range: -40°F to +250°F. Couplings/fittings: permanent crimped on fittings.

HIGH PRESSURE

SAE 100R16
SAE 100R16GATES M2T MEGAFLEX® 2 WIRE BRAID HOSE—SAE 100R16
Designed for high pressure hydraulic oil lines. Meets SAE 100R16 hose requirements. The Gates M2T has smaller wall size, tighter bend radius, but performs equally well to the older, but still popular SAE 100R2 AT specs. Tube is made of a black, oil resistant synthetic rubber (Nitrile, Type C). Reinforcement: two braids of high strength steel wires. Cover: black, oil, abrasion, weather resistant, sythetic rubber—nitrile. Available with a thicker cover called, MEGATUFF®. This hose is for sale in fifty (50) foot lengths only. Temperature range: -40° F to +212° F (-40° C to +100° C).

SAE 100R17
SAE 100R17GATES M3K MEGA3000® BRAID HOSE—SAE 100R17
Made for high pressure hydraulic oil lines. Equal to SAE 100R17 specifications. The M3K hose has smaller dimentions and will bend at a much tighter radius compared to SAE 100R1 and SAE 100R2 hose series. Tube is made of black, oil resistant, synthetic rubber; sizes -4 to -16 are Nitrile. Cover is black, oil, abrasion and weather resistant, sythetic rubber; size -4 to -16 is a modified Nitrile construction. Temperature range: -40°F to +212°F.

SAE 100R7 CONDUCTIVE
SAE 100R7GATES C7S—SAE 100R7
Designed for hydraulic, pneumatic, & water base fluids ("water glycol" & "water/oil emulsions"). Gates suggested use: cherry picker equipments for telephone pole maintenance crews, lube lines, "blowout preventer control lines," lifts, and farm machineries. Tube construction: Nylon. Reinforcement: One polyester braid. Cover: Black color, perforated cover, urethane construction. Tolerance: -65 °F to +200 °F non-stop service for hydraulic oils; however, the maximum for water glycol fluids is +158 °F.

SAE 100R7 NON-CONDUCTIVE
SAE 100R7GATES C7SNC—SAE 100R7NC
This hose is equal in performance to the C7S series (SAE 100R7 Conductive), except it has an orange color cover and non-perforated. Designed for non-conductive applications. According to Gates Catalog 2002: "Maximum leakage shall not exceed 50 microamperes when subjected to 75 kV/Ft. for five minutes." May be used for shop cranes with/close to electrical motors.

SAE 100R7 CONDUCTIVE TWIN LINE

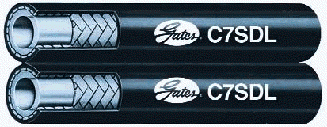

SAE 100R7 Dual LineGATES C7SDL—SAE 100R7 TWIN LINE
This twin line hose is the same design as the C7S (SAE 100R7 Conductive). For use on forklift trucks.

SAE 100R7 NON-CONDUCTIVE TWIN LINE
SAE 100R7 Dual Line Non-Conductive GATES C7SNCDL—SAE 100R7NC TWIN LINE
This twin line hose is essentially the same design as the C7S (SAE 100R7 Non-Conductive).

MEDIUM PRESSURE

SAE 100R6
NO PHOTO GATES C6—SAE 100R6 MEDIUM PRESSURE HOSE
Recommended for hydraulic oil lines and anti-freeze solutions. Textile reinforcement. Designed for medium pressure, temperature, pneumatic applications. Approximately 400 psi working pressure. Hose fittings required.

LOW PRESSURE

SAE 100R4
SAE 100R4GATES GMV—GLOBAL MEGAVAC® RETURN LINE AND SUCTION HOSE—SAE 100R4
Made for low pressure, suction lines using petroleum products and water based hydraulic fluids. Tube is made of black, synthetic nitrile, type C. Reinforced with double spiral textile, then an addition of helical spiral wire to prevent collapsing. Cover is made is made of neoprene construction, which is oil and abrasion resistant. Temperature range: -40° F to +275° F @ constant flow, or +300° F intermittent flow. All sizes are rated at 25 inch per mercury (inch/Hg). Sold only in 25 or 100 foot lengths. See Bulletin 43.

Push On Hose
Gates LOL+ Lock On Hose PRODUCT INFORMATION
Gates® LOL Plus. "Petroleum-base hydraulic oils, water, glycol antifreeze solutions, hot lubricating oils, and air. . . . not recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Not recommended for gasoline or diesel fuels. . . . Temperature Range: -40 °F to +212 °F (-40 °C +100°C). For air: 160 °F (+71 °C) only . . . Tube: Black, oil resistant synthetic rubber highly resistant to oil and heat . . . Reinforcement: One fiber braid. . . . Cover: Oil- and abrasion-resistant synthetic rubber. Available in black-Neoprene (LOLA), . . . "  —Gates Hydraulic Catalog, 2002 ed. pp. 27.  Push on fittings are available.  Minimum orders apply: 300 feet (ft) reel for 3/16 inch. 50 ft & 300 ft length for 1/4 inch to 1/2 inch sizes. 50 ft & 250 ft length for 5/8 inch to 3/4 inch hose sizes.

AUTOMOTIVE & MARINE APPLICATIONS

SAE 100R5 Type D
SAE 100R5DGATES C5D HIGH TEMPERATURE, MULTIFLUID HOSE
Designed for petroleum and phosphate ester fluids, diesel fuel, transmissions lines, hot, lube oil lines, powersteering, gasoline, turbocharger oil supplies. This hose is meldew resistant, polyester braid cover with rubber.

SAE 100R5 TYPE M
SAE 100R5MGATES C5M MARINE FUEL LINE HOSE
Marine diesel fuel and gasoline applications, including hot oil lines of up to +212° F. Complies with SAE J1527 Type A Class I and SAE J1942 requirements. Core is Nitrile, type C. One wire braid reinforcement with blue color cover. Sold in 50 foot lengths, except for size (-5), which is sold at 385 lengths only.

SAE 100R14
SAE 100R14GATES C14 (SAE 100R14A) & C14CT (SAE 100R14B) PTFE BRAID COVERED HOSE—SAE 100R14 A/B
Type-A nonconductive is white, smooth bore PTFE; type-B conductive is black & white smooth bore PTFE. Conductive type is designated with "C14CT" nomenclature. This hose is excellent for most air compressor discharge, oil, fluids different variety, or anything with hot and greasy applications. Furthermore, this hose is excellent for both impulse and non-impulse designs. Temperature range: -65° F to +400° F @ dynamic. -65° F to +450° F @ static.
